McFarlane / SEAT-KT-2 - Cessna SEAT KIT (Standard Seat)

Part Number: SEAT-KT-2
Description: SEAT KIT (Standard Seat)
FAA-PMA

PMA Supplement 35

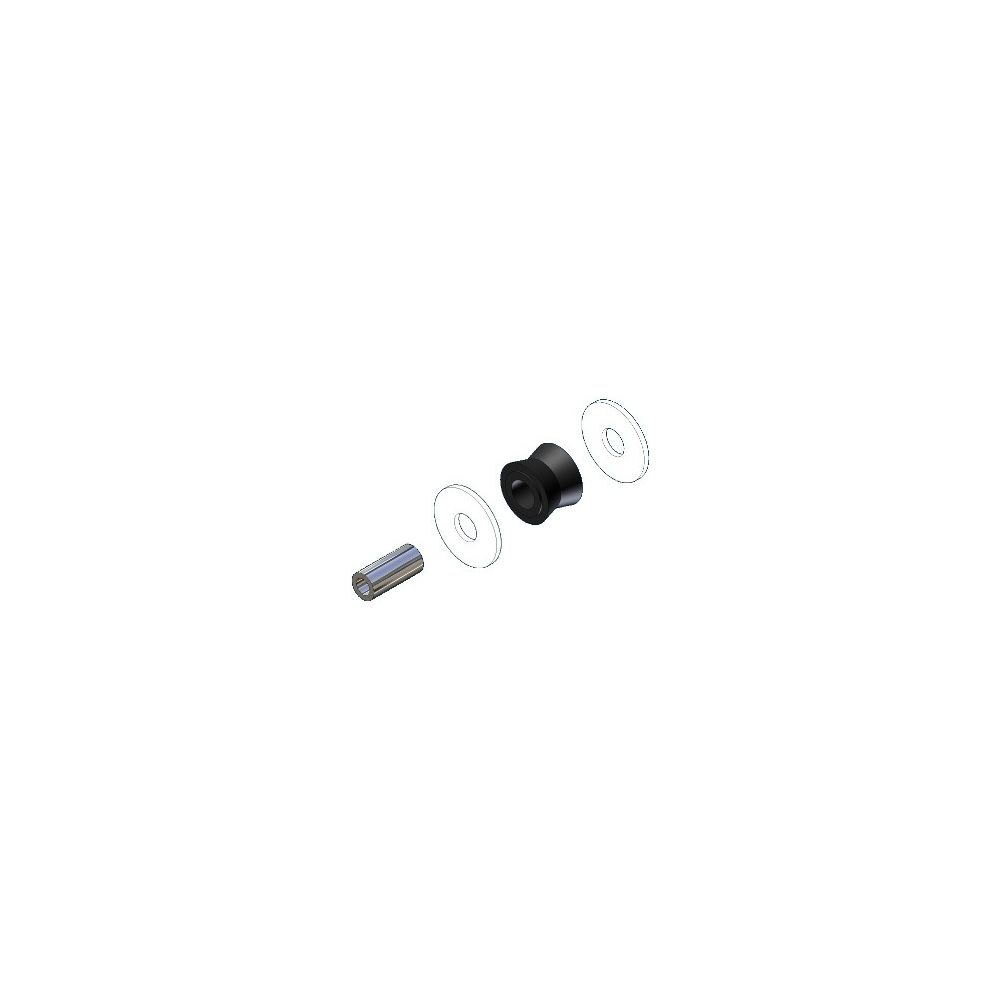

Kit contains:
8 MCS1554-1 Washers
4 MCS1551-1 Roller 5/8"
4 MC1414104-54 Bushing

This kit is used with the Standard or Vertically adjustable seat installed in Cessna single engine aircraft from 1963 through 1986. This seat is identified by one or no adjustment crank handles. The seat back angle is adjusted with a lever on the side of the seat back. It is also used with some 336-337 series aircraft. The SEAT-KT-2 contains the same components as four of the Cessna 1414100-212 kits.

These parts are not used on models 150-152.


McFarlane Aviation FAA-PMA replacement seat parts were developed to assist in complying with the parts replacement requirements of A.D. 2011-10-09. This A.D. requires the periodic inspection and replacement of the seat components of the entire Cessna light aircraft fleet. Our parts are direct replacements for the wear related seat components.

McFarlane seat parts are superior to O.E.M. parts in many ways. Our rollers are fabricated from molydisulfide filled nylon for improved strength and self-lubrication. All rollers are fully machined from extruded stock for a finer surface finish and higher strength. McFarlane bushings are machined from alloy steel for longer life and greater wear resistance. Our wear washers are made from a super tough acetyl plastic and have far better wear properties and resistance to aging. McFarlane seat components will outlast the original parts.

The seat related replacement parts are not serial number specific as the type of seat installed in the aircraft was optional when the aircraft was ordered from the factory. A common seat configuration is the pilot seat being articulating while the co-pilot seat is the standard or vertically adjustable style.

The best way to ensure that you are choosing the proper seat kit for your aircraft is to measure the rollers:

Articulating seats and model 177 Cardinal seats use the MCS1704-1 roller (approximately 1 3/8 diameter)
Standard seats use the MCS1551-1 roller (approximately 5/8 diameter)
150-152 Series and pre-1963 single engine Cessna aircraft use the MC0311310 roller (approximately 7/8 diameter with no wear washers)
